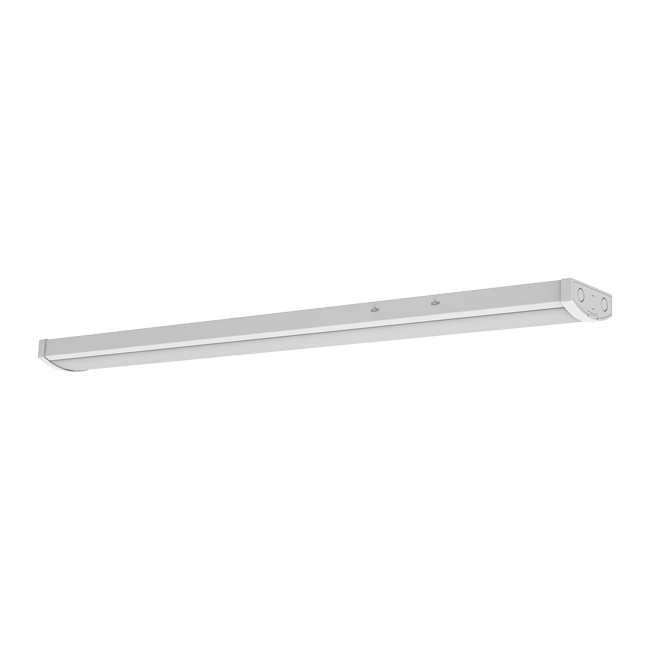

4ft Linkable Wrap Light – 5WAY CCT & Power Adjustable – Sensor

Model No.: VO-WR5FT4W50-347-5WAY-L-S
Power : 50W/ 45W/ 40W/ 30W/25W ADJ
CCT : 3000K/ 3500K/ 4000K/ 5000K/ 6000K Adj
Input Voltage : AC120-347V

More Details

Spec sheet Contact Us

4ft Linkable Wrap Light – 5WAY CCT & Power Adjustable – Sensor

Other product from this category

Product Details

Relateddocuments

Spec sheet

Manual

IES

Features

https://votatec.ca/wp-content/uploads/2024/09/DLC2.png

https://votatec.ca/wp-content/uploads/2024/06/30-35-40-45-60K.png

Categories:

LED Fixtures Wrap

Tags:

LED wrap Votatec

Product Specification

Model No.: VO-WR5FT4W50-347-5WAY-L-S
Beam Angle:120°
Brightness:115LM/W
CCT:3000K/ 3500K/ 4000K/ 5000K/ 6000K Adj
CRI:80
Dimension:47.2″ X 5.3″ X 2.2″
Input Voltage:AC120-347V
Power: 50W/ 45W/ 40W/ 30W/25W Adj
Power Factor:>0.9
Size:4ft
IP Rating:IP20
Special Features:Sensor

4ft Linkable Wrap Light – 5WAY CCT & Power Adjustable – Sensor

Model No.: VO-WR5FT4W50-347-5WAY-L-S
Power : 50W/ 45W/ 40W/ 30W/25W ADJ
CCT : 3000K/ 3500K/ 4000K/ 5000K/ 6000K Adj
Input Voltage : AC120-347V

More Details

Other product from this category

contact us

Product Features

Model No.: VO-WR5FT4W50-347-5WAY-L-S
Beam Angle:120°
Brightness:115LM/W
CCT:3000K, 3500K, 4000K, 5000K, 6000K Adj
CRI:80
Dimension:47.2″ X 5.3″ X 2.2″
Input Voltage:AC120-347V
Power:25W Adj, 30W, 40W, 45W, 50W
Power Factor:>0.9
Size:4ft
IP Rating:IP20
Special Features:Sensor

Product Certificates

Categories:

LED Lamps MR16

Tags:

LED MR16 Votatec

Product Overview

Link up to 8 of these 4ft LED wraparound fixtures on one 5-amp circuit, so a whole shop run feeds one breaker. Five wattage steps (50W down to 25W) and five colour temperatures (3000K to 6000K), both set on the fixture. Output peaks at 6000 lumens, 120 lumens per watt, at 4000K. Built-in microwave occupancy sensor, stamped metal housing, AC120-347V, damp rated, cETL listed, 5 year warranty.

How many wrap lights can you link together?

Up to 8, as long as the total load stays under 400 watts on one 5-amp circuit. At the full 50W setting that's exactly 8 fixtures and no headroom. Dial the selector down and the wattage ceiling stops binding, but 8 stays the fixture limit either way. The install manual adds a step crews skip: run a ground wire to every fourth fixture in the chain.

What does linkable mean on a wraparound light?

Each fixture carries a male and a female connector, so the next one plugs into the one before it and you don't need a junction box between runs. Connecting cables come in 1ft, 3ft and 6ft and are ordered separately, so measure your spacing before the order goes in. The installation kit, anchors and screws are in the box.

Which wattage suits the room?

IES puts general shop and service work at 10 to 20 foot-candles and repair bays at 30 to 50. A 20ft by 20ft bay at 30 foot-candles wants roughly 12,000 lumens before light-loss factors, which is two of these at 4000K and 50W. Drop the same two fixtures to 25W and you're near storage-aisle levels. One SKU covers the whole building.

Sensor and fit details that aren't on the spec panel

The microwave sensor mounts to 12ft maximum and covers roughly 34ft across at that height. Hold time, daylight threshold (10, 30 or 50 lux), standby level and standby period all set on DIP switches, so the RC-100 remote is optional rather than required. Expect about 15 seconds of warm-up flicker on first power-up. Mounting holes sit 1030mm (40.55") apart on the 4ft body, and the fixture wants a supported outlet box. Dimming is 0-10V on the purple and pink leads, tested against four Lutron drivers. Damp location and IP20, so keep it clear of washdown areas. For linking limits, the DIP switch tables and the sensor coverage diagram, open the Manual (PDF) , and pull the IES file if your designer needs 50W photometry at all five colour temperatures. Send us your fixture count and mounting height and we'll come back with a wholesale quote plus a voltage check for the panel you're feeding.
