12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable

  • Model No.: VO-DFB12W15-120-D-5Way
  • Power : 15W
  • CCT : 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Input Voltage : 120V
More Details
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable

Other product from this category

Product Details

Features

https://votatec.ca/wp-content/uploads/2024/04/5_Warrantied-icon_135_135-1-1.png
https://votatec.ca/wp-content/uploads/2024/04/ELT_Icon_135_135-1-1.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01-52.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01.png
https://votatec.ca/wp-content/uploads/2024/05/Icon_107107-94.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-28.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-10.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-05.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-11.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-68.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-09.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-08.png

Product Specification

  • Model No.: VO-DFB12W15-120-D-5Way
  • Beam Angle:140°
  • CCT:2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Color:Black/Brushed Brass/ Bronze/ White/Brushed Brass/ White/Brushed Nickel
  • CRI:>80
  • Dimension:12"x2"
  • Input Voltage:120V
  • Power:15W
  • Power Factor:0.7
  • Brightness:1200Lm
  • Size:12"
Link copied!

12″ Decorative Flat Band Flush Mount – 5Way CCT & Power Adjustable

  • Model No.: VO-DFB12W15-120-D-5Way
  • Power : 15W
  • CCT : 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Input Voltage : 120V
More Details

Other product from this category

Product Features

  • Model No.: VO-DFB12W15-120-D-5Way
  • Beam Angle:140°
  • CCT:2700K, 3000K, 3500K, 4000K, 5000K ADJ
  • Color:Black/Brushed Brass, Bronze, White/Brushed Brass, White/Brushed Nickel
  • CRI:>80
  • Dimension:12"x2"
  • Input Voltage:120V
  • Power:15W
  • Power Factor:0.7
  • Brightness:1200Lm
  • Size:12"

Product Certificates

https://votatec.ca/wp-content/uploads/2024/04/5_Warrantied-icon_135_135-1-1.pnghttps://votatec.ca/wp-content/uploads/2024/04/ELT_Icon_135_135-1-1.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01-52.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01.pnghttps://votatec.ca/wp-content/uploads/2024/05/Icon_107107-94.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-28.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-10.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-05.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-11.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-68.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-09.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-08.png

Categories:

LED Lamps MR16

Tags:

LED MR16 Votatec

Product Overview

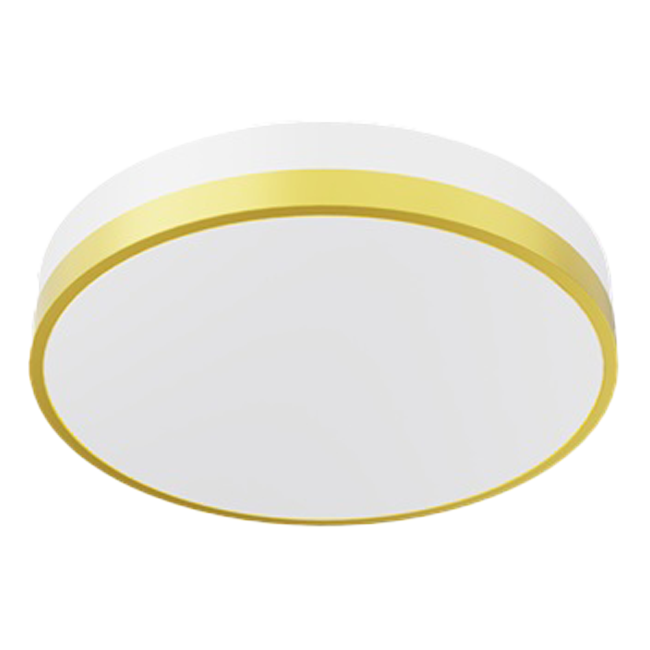

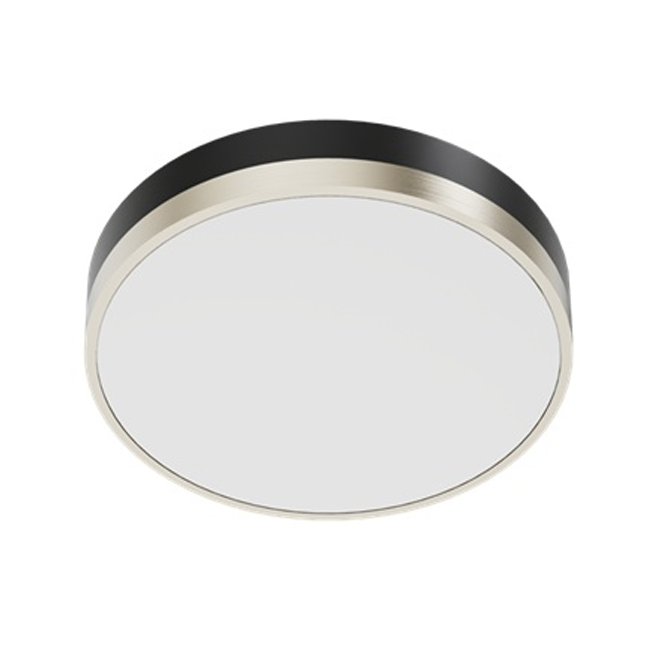

The 12" Decorative Flat Band Flush Mount is a modern flush mount light fixture with two switches set into its trim ring, so one part number covers 25 wattage-and-colour combinations.

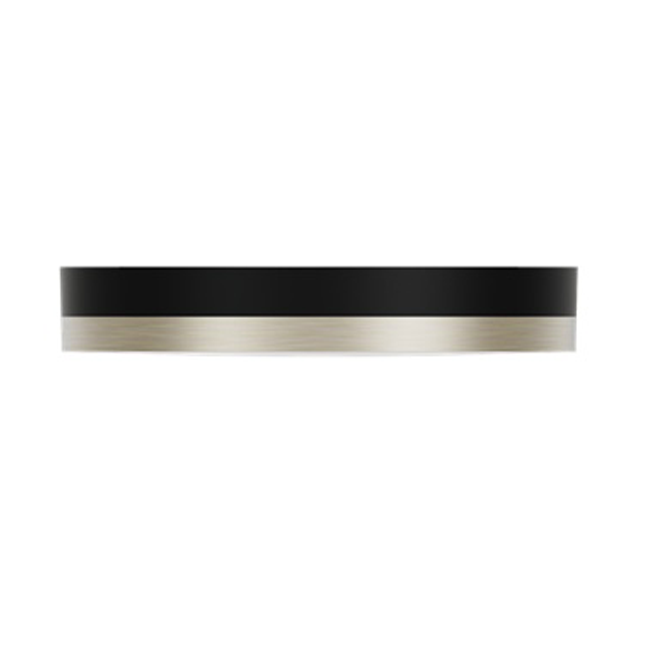

Choose 15W, 13W, 11W, 9W or 7W. Output runs 460 lm to 1,050 lm, CRI is 80+, and it sits 2.01" off the ceiling across a 12" face.

Iron housing, PMMA diffuser, four dual-tone finishes. cETLus damp-location listed, 2.5kV surge protection, 5-year warranty.

What are flush mounted ceiling lights called?

They also sell as ceiling mounts, close-to-ceiling lights and disk lights. Canadian buyers often say "pot light" for anything round and flat, though that word usually means a recessed fixture. This one is surface-mounted. It fastens to the ceiling box, so it works where there's no room to recess.

How do I know what size flush mount ceiling light to buy?

Add the room's length and width in feet, then read that total as inches of fixture diameter. A 12 by 12 bedroom lands near 24", which two 12" units cover more evenly than one oversized fixture. For hallways, entries and laundry rooms, a single 12" does it.

Set the wattage and colour temperature before you install it

Both switches sit on the trim ring, and the manual tells you to choose before the fixture goes up. Pick 2700K, 3000K, 3500K, 4000K or 5000K on one, five wattage steps on the other. The 4000K and 5000K settings run brighter at every step, so 15W at 5000K gives 1,050 lm against 1,000 lm at 3000K. One SKU, 25 combinations, less shelf stock.

Do you need an electrician to fit a flush ceiling light?

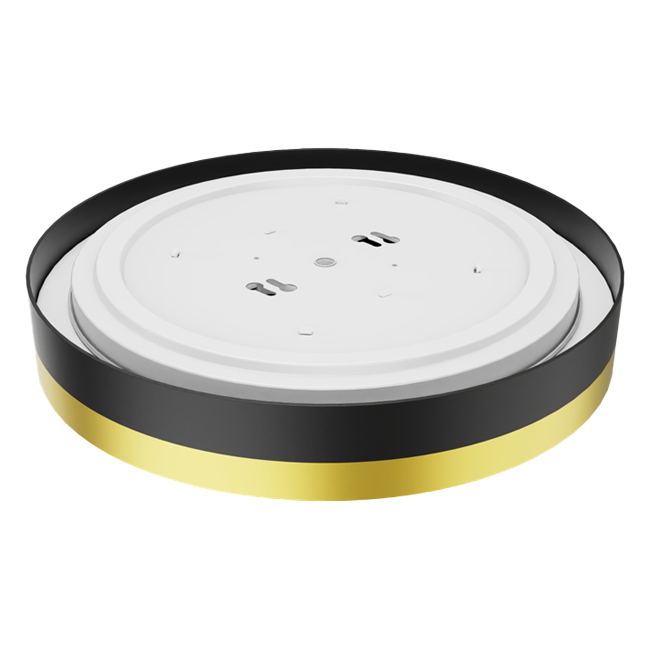

For the connection, yes. It mounts to a standard ceiling box and ships with three wirenuts and two 1-1/2" box screws. Loosen the cover, fix the plate to the box, join ground, black and white, then rotate the plate clockwise and lock it. Work must meet the Canadian Electrical Code, CSA C22.1.

Where it can go, and where it can't

Damp-location listed, so bathrooms, laundry rooms and covered porches are fine. It's IP20, so keep it clear of direct water and weather. It runs -20°C to 40°C, mounts horizontally or vertically, and dims 10% to 100% on ELV or TRIAC controls.

For the tested dimmer list and the full lumen table by wattage and colour temperature, open the Spec sheet and Manual. Send us your unit count by finish and we'll confirm stock on the four trims with a wholesale quote.
