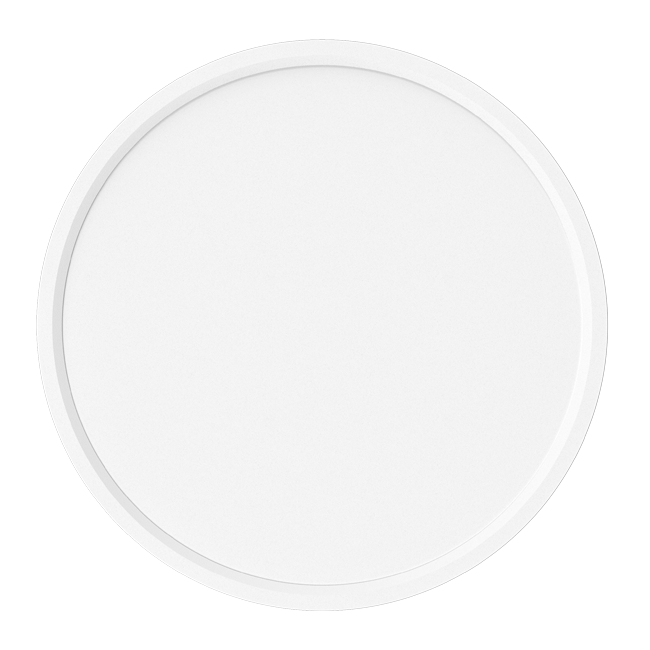

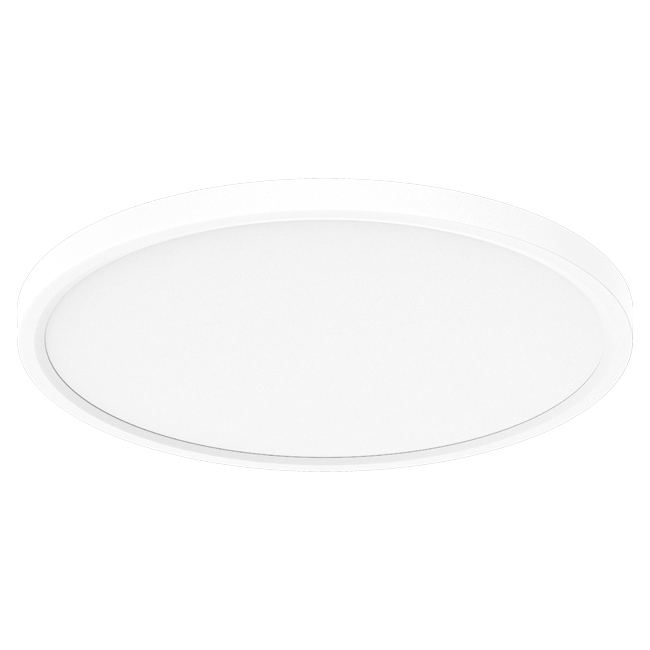

A 12-inch slim ceiling fixture that runs on any Canadian supply between 120V and 347V, so one part number covers a residential remodel and a 347V commercial floor.
24W draws 2,100 lm at better than 100 lm/W, with five colour temperatures on a switch: 2700K, 3000K, 3500K, 4000K and 5000K. CRI is 80+.
PC housing, cETLus damp-location listed, 1KV surge protection, 5-year warranty.
Why does Canada use 347V?
Canadian commercial buildings run 600V three-phase service, and 347V is what you get line to neutral off it. Lighting at 347V means smaller conductors and more fixtures on one circuit. Most fixtures sold here are 120-277V because they're built for the US market, so a 347V floor needs a step-down transformer or a fixture rated for the voltage. This one is rated for it. The same P6112-K248-N347W5T-W1 wires to 120V, 277V or 347V at 50/60Hz, with power factor above 0.9 and 1KV of external surge protection as standard.
How long do LED flush mounts last?
Rated life is 50,000 hours to L70, roughly 17 years at 8 hours a day. The driver sits outside the light guide plate in its own box, so heat isn't trapped against the LEDs. Votatec backs it with a 5-year warranty.
Set the colour temperature before you hang it

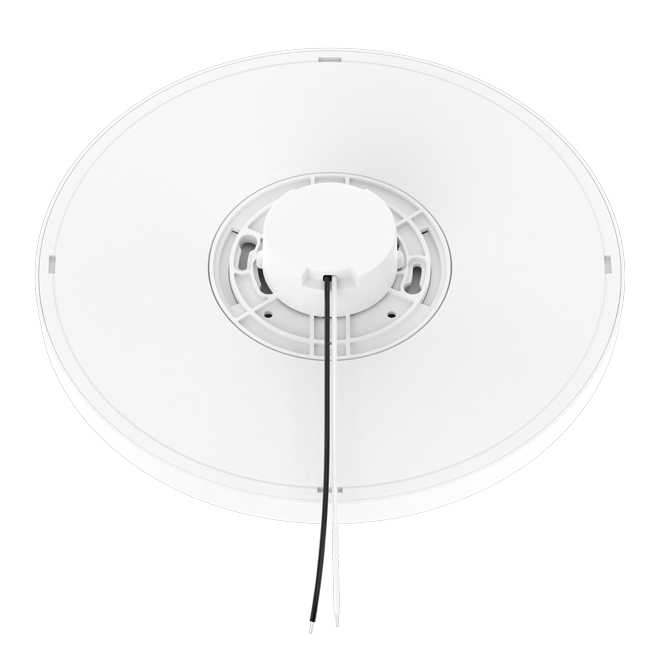

The CCT selector is a switch on the back of the fixture and you can't reach it once the unit is twisted onto its bracket. Pick 2700K, 3000K, 3500K, 4000K or 5000K first. Output holds within about 8% across all five settings, so specifying a warmer colour doesn't cost you meaningful light.
Will it fit the ceiling, and the dimmer?
Check the compartment first. The spec sheet calls for a minimum of 11.8 inches across by 0.71 inches deep. It's rated for enclosed fixtures and listed for damp locations, so covered entries and bathrooms are fine, though it isn't wet-rated for direct exposure. It runs from -20°C to 45°C, mounts horizontal or vertical, and dims to 10% on most residential dimmers. The box ships with the bracket, three screws and three wire connectors.
For the wiring sequence, the safety-rope step and the location warnings, open the Manual (PDF) in the Related documents panel, and pull the IES file if your designer is running photometrics. Send us your quantity and the supply voltage on site, and we'll come back with a wholesale quote and confirm 347V stock.
