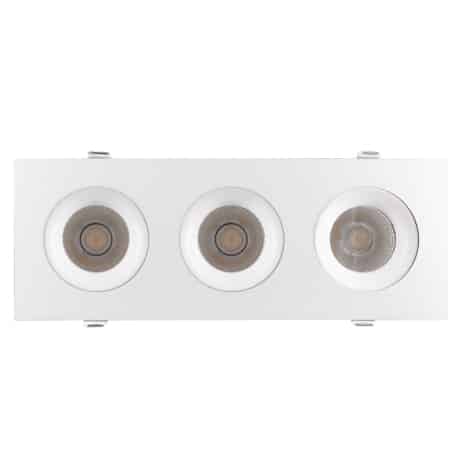

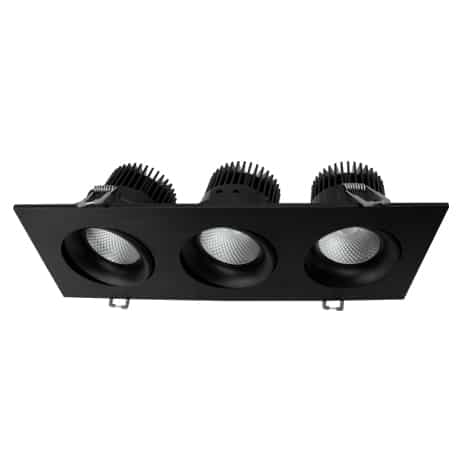

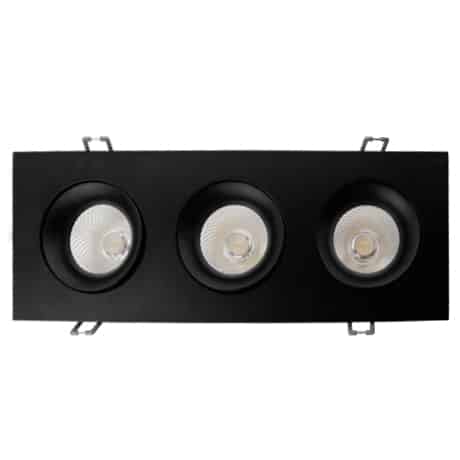

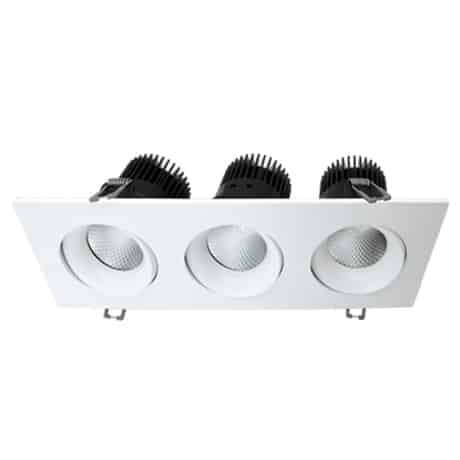

A directional recessed light with three aimable heads in one housing. Each 3.5in gimbal tilts and rotates on its own, so one cut-out can wash a wall, light a counter and pick out artwork. No track needed.
36W total, 2,228 to 2,718 lumens depending on the colour temperature you switch it to, CRI 90+, roughly 35 degree beam.
Cold forged heat sink, die cast trim ring, Type IC and air tight. 120V Triac dimming to 10%, five year limited warranty.
What are directional recessed lights?
They're recessed fixtures whose heads pivot and rotate, so you aim the beam instead of accepting a fixed downward wash. This one puts three of them behind a single 11-5/8in by 4-3/8in trim. Each head sits deep in its own regressed cone, which keeps the diode out of normal sight lines and cuts the glare you get from a flush lens.
Can each head be aimed separately?
Yes. All three tilt and rotate on their own, so one fixture can hold three different aiming angles at once. Measured beam runs 34.4 to 35.6 degrees across the five colour temperatures, taken from the fixture's own IES files rather than the round number on the sheet. That's an accent beam. Use it to pick things out, and pair it with wider optics for ambient fill.
Does recessed lighting have to be symmetrical?
No, and a three-head bar is the easy way out of that argument. The outer head centres sit 7-1/4in apart on a fixed axis, so you get an even triple from one opening instead of laying out three separate cut-outs, three separate holes in the vapour barrier and three chances to end up 20mm off a joist.
What it takes to fit one
Cut 3-3/4in by 10-7/8in, and leave 3-1/8in of depth behind the ceiling for the heads. The driver lives in a remote junction box measuring 6-1/8in by 4-5/8in by 1-5/8in, so there's no housing can to buy, but that box still has to land somewhere reachable in the plenum. It's Type IC and air tight, rated -4°F to 104°F, and certified for indoor use. Dimming is Triac down to 10%, with Lutron DVCL-153P, Leviton IPL06-10Z and Cooper SI06P among the controls Votatec has tested against it.
For the tested dimmer list, the cut-out drawing and the junction box dimensions, open the Spec Sheet (PDF) in the Related documents panel, and take the IES set if your designer needs per-colour-temperature photometry. Send us your fixture count and ceiling build-up and we'll come back with a wholesale quote and a check on whether 35 degrees suits the throw you're planning.
