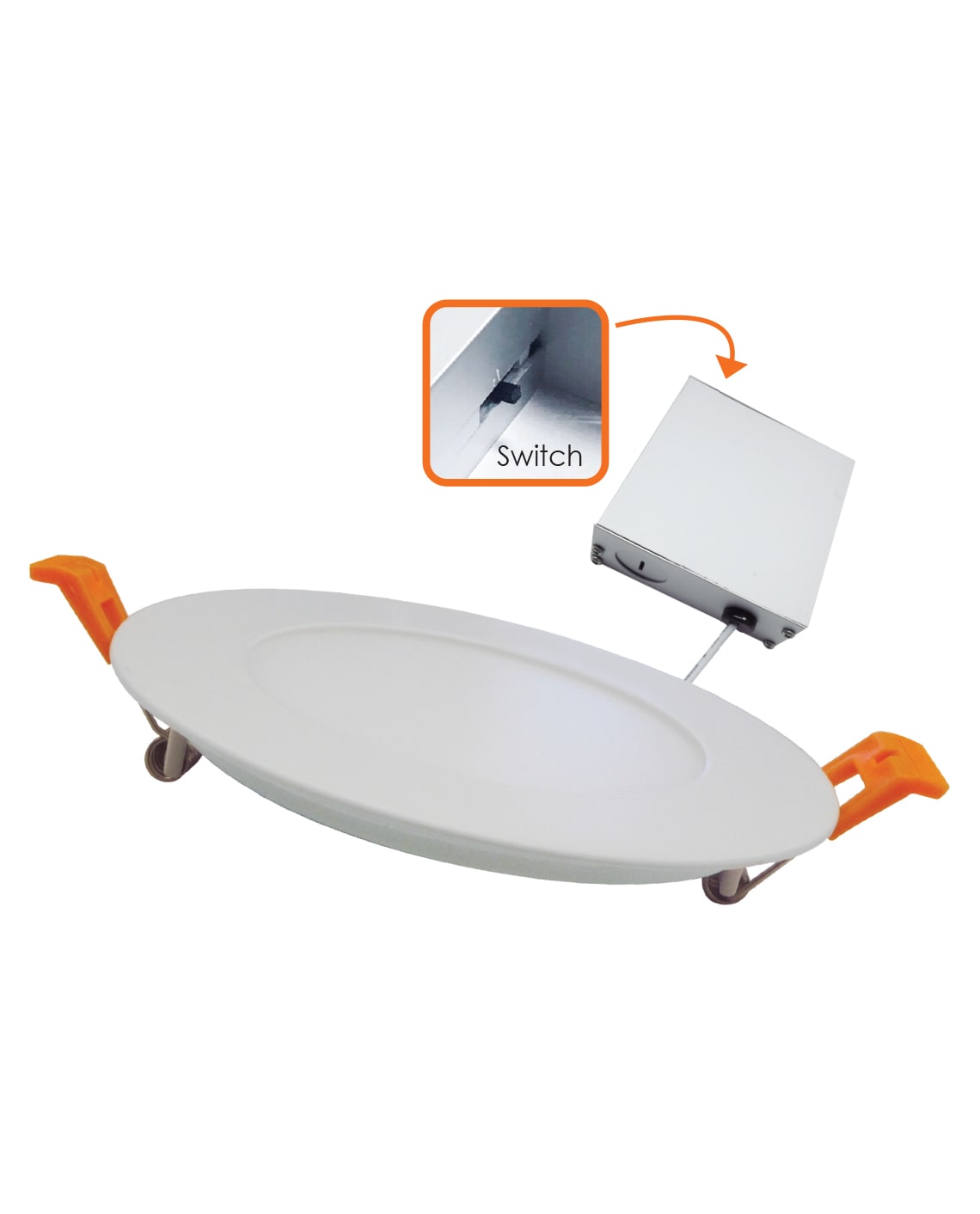

4″ Slim Multi-Voltage 5Way CCT

The 4" Slim pot light runs on any supply from 100V to 347V, so a single part number covers a 120V condo suite and a 347V commercial panel on the same job.

820 lumens from 10 watts, 82 lm/W, CRI 82, and five colour temperatures from 2700K to 5000K chosen on a slide switch before install.

ETL listed and ENERGY STAR certified. Type IC, damp rated, 60,000 hours, five-year warranty.

What size hole do I need for a 4-inch recessed light?

104mm, or 4.1 inches. The trim measures 124.5mm (4.9 in) across, so it covers a cut that's slightly off. Housing depth is just 23mm (0.9 in), which is why it drops into a joist bay a can light won't fit. The junction box is separate at 84 x 84 x 30mm and feeds through the same opening, so you don't need a second access hole.

What's the recommended spacing for 4 inch pot lights?

Halve the ceiling height. On a standard 8 ft ceiling that's roughly 4 ft between centres for even coverage with no scalloping. Drop to 3 ft over counters and work surfaces where you want the light flat and shadow-free. This fixture throws a wide diffuse pattern rather than a tight cone, so the pools overlap sooner than they would from a narrow-beam downlight, and you can hold the wider end of that range in corridors.

Will it run on a 347V panel?

Yes, and that's the reason this SKU exists. One driver covers 100V through 347V, certified. On mixed projects, a warehouse on 347V and its front office on 120V take the same fixture, so you order one line item, stock one spare, and your electrician never pulls the wrong box off the van. Dimming is 0-10V, wired through the yellow 0V and red 10V leads in the junction box, down to 10%.

Where it fits, and where it doesn't

It's Type IC, so it sits in direct contact with insulation. It's rated Indoor and Damp, which covers a bathroom ceiling or a covered porch, but not a wet location. For exposed soffits, shower ceilings or anywhere hit by direct water, take the 4" fire-rated version instead, which is certified wet.

For the wiring sequence, the CCT switch positions and the bilingual install steps, open the Manual (PDF). Send us your fixture count and voltage split and we'll come back with a wholesale quote.
