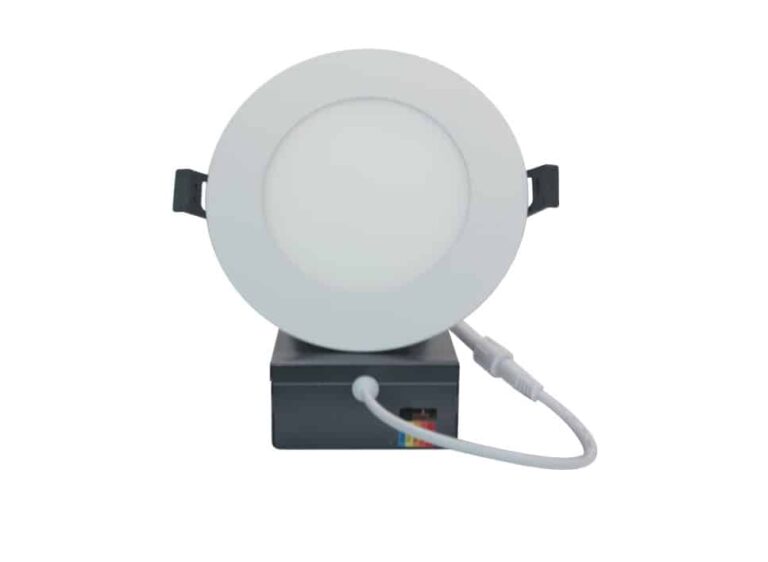

4″ Slim Round Panel

Model No.: VO-RP4W9-120-D
Power : 9W
CCT : 3000K/ 4000K/ 5000K
Input Voltage : 120V

More Details

Spec sheet Contact Us

Other product from this category

Product Details

Relateddocuments

Spec sheet

Manual

IES

Features

Categories:

LED Fixtures Downlight

Tags:

Downlight LED slim round panel

Product Specification

Model No.: VO-RP4W9-120-D
Beam Angle:120°
Brightness:750Lm
CCT:3000K/ 4000K/ 5000K
Compatible Dimmers:Lutron: S600-P/MACL-153M/CTCL-153P/MS-OPS2/PD-6WCL/MRF2-6ND-120-WH/SCL-153P/SCL-153PH/LGCL-153PLH Leviton: TTI06-1NG/1D4402/1C2505/6641/6161/6631/6633
Dimension:4.92″ x 0.8”
Input Voltage:120V
Power:9W
Power Factor:>0.9
Special Features:Isolated Driver / Flicker Free / 15.7"(40cm) Cable
CRI:>80
Size:4"

4″ Slim Round Panel

Model No.: VO-RP4W9-120-D
Power : 9W
CCT : 3000K/ 4000K/ 5000K
Input Voltage : 120V

More Details

Other product from this category

contact us

Product Features

Model No.: VO-RP4W9-120-D
Beam Angle:120°
Brightness:750Lm
CCT:3000K, 4000K, 5000K
Compatible Dimmers:Lutron: S600-P/MACL-153M/CTCL-153P/MS-OPS2/PD-6WCL/MRF2-6ND-120-WH/SCL-153P/SCL-153PH/LGCL-153PLH Leviton: TTI06-1NG/1D4402/1C2505/6641/6161/6631/6633
Dimension:4.92″ x 0.8”
Input Voltage:120V
Power:9W
Power Factor:>0.9
Special Features:Isolated Driver , Flicker Free , 15.7"(40cm) Cable
CRI:>80
Size:4"

Product Certificates

Categories:

LED Lamps MR16

Tags:

LED MR16 Votatec

Product Overview

A 4" slim LED pot light with its colour temperature locked at the factory, so every fixture on the job matches. No switch, no crew guessing. 9W draws a certified 750 lm at CRI 94, runs on 120V, and dims to 10% on ELV and TRIAC. Drops into a 4-1/4" hole and needs 0.9" of plenum. Die-cast aluminum frame, isolated flicker-free driver, ENERGY STAR certified, Type IC, wet location listed, 5 year warranty.

What is the hole size for a 4 inch pot light?

Cut a 4-1/4" hole. This fixture seats in any opening from 4-1/4" (11.0 cm) to 4-1/2" (11.5 cm), and the 4.92" trim covers the whole range, so a ragged cut still disappears. Behind the ceiling you need 0.9" of depth. Four spring clips hold it, and it's easier to compress them one at a time rather than all four at once. The junction box accepts a maximum of two line feeds, which is what caps the length of a daisy-chained run.

What is an IC rated pot light?

IC means insulation contact. Ceiling insulation can sit directly against the housing without a fire risk, so nobody has to hold batt back from the fixture in an insulated ceiling. This one is listed Type IC on the ENERGY STAR downlight register under VO-RP4W9-120-30-D, -40-D and -50-D. IC and airtight are two separate ratings and buyers often read one as implying the other. Ask us to confirm airtight status in writing before you spec it into a sealed attic.

Is IC rated the same as fire rated?

No. Different tests, different problems. IC covers contact with insulation. A fire rating covers how long a ceiling assembly holds a fire back. This fixture is IC rated and it isn't fire rated, so where the drawings call for a rated ceiling, use the [4" fire-rated slim panel](https://votatec.ca/product/4-slim-panel-5-way-cct-fire-rated/) instead.

Should you pick fixed or switchable colour temperature?

Pick fixed when the whole job has to match. Order VO-RP4W9-120-30-D for 3000K, -40-D for 4000K, -50-D for 5000K, and nothing on site can change it. That's the point on a spec job where three crews install over three weeks. If you'd rather stock one SKU and set colour at install, the [6-way CCT version](https://votatec.ca/product/4-slim-round-panel-6-way-cct-adjustable/) switches between 2700K and 6000K on the driver housing. For the cut-hole range, the wire-strip lengths and the two-feed limit on the junction box, open the Manual (PDF). Send us your fixture count and colour temperature and we'll come back with a wholesale quote and confirm stock.
