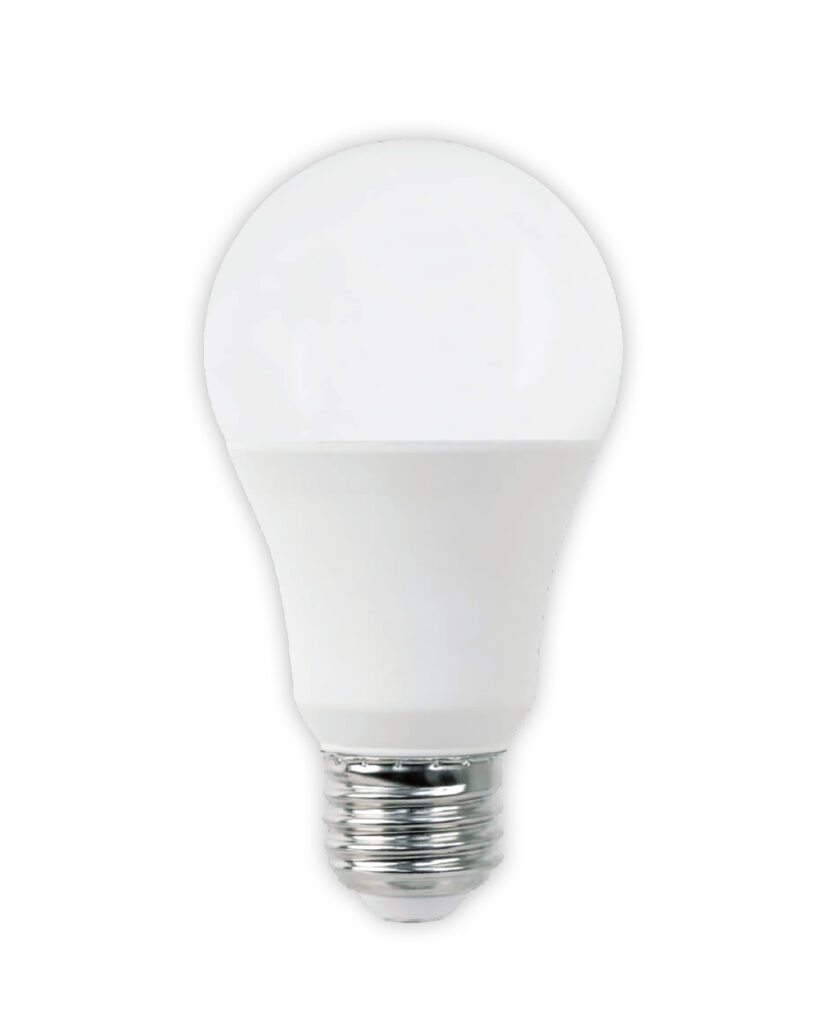

Votatec's A19 LED bulb is an 800-lumen-class E26 lamp built for enclosed fixtures, where most LED bulbs void their own warranty. It's fully dimmable on standard Leviton and Lutron controls.
10W. Four fixed colour temperatures: 3000K, 4000K, 5000K and 6000K. CRI above 80, 120V, rated 25,000 hours. The linked IES file measures 883 lumens at 3000K.
Polycarbonate lens, milky finish, 0.5kV surge protection standard, cUL certified, 3-year warranty.
What is 800 lumens LED equivalent to?
A 60W incandescent bulb. That's the conversion the whole industry works to, and it's why this 10W lamp replaces a 60W bulb one-for-one with no drop in brightness. Lumens measure light output, watts measure power drawn, and the two stopped tracking each other the day LED arrived. If a fixture is labelled "maximum 60W", that limit is about heat, not light. A 10W LED sits far under it, so you can fit an 800-lumen lamp in a 25W-rated fixture safely.
Can you use this bulb in an enclosed fixture?
Yes, and it's rated for it on the spec sheet. Most A19 LED bulbs aren't. Trapped heat inside a sealed globe, jelly-jar or ceiling dome cooks the driver, which is why so many bulbs carry a printed exclusion for enclosed fixtures and quietly drop the warranty if you use one. This lamp is built to run in that heat, with 0.5kV surge protection and a 25,000-hour life to back it.
Where the light actually goes
Down, mostly. Photometry on the linked IES file puts 78% of output below horizontal and 22% above. For a ceiling fixture lighting a floor or worktop, that's the useful direction, and it's the reason this lamp reads brighter than its lumen figure suggests in a downlight. If you're lighting a fabric shade or an open pendant that needs even wash in every direction, look at the 17W A19 instead, which spreads a third of its output upward.
Dimming and fixture fit
Tested on Leviton 6681, 6674 and 6683, and Lutron DVCL-153PLH, S600-P, DV600-P15 and MACL-153M. Body is 4.09 in tall by 2.36 in across, so it clears standard A19 sockets and most trims. This is also the only A19 in the range offered in 6000K.
For dimmer compatibility, wiring and the per-colour-temperature lumen table, open the Spec sheet (PDF), and pull the IES file if your designer needs the full candela distribution. Send us your quantity and colour temperature split and we'll come back with a wholesale quote and a stock check.
