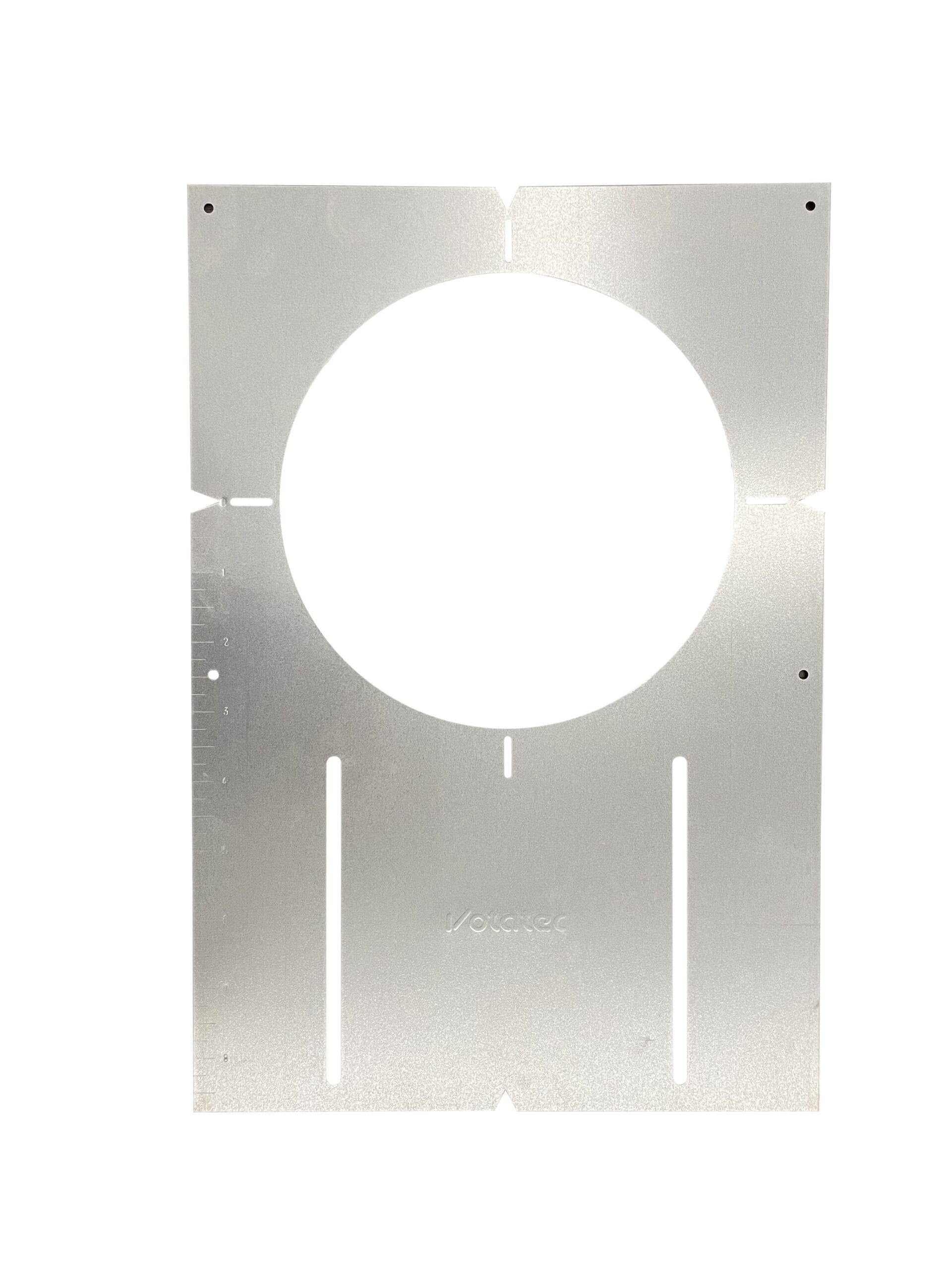

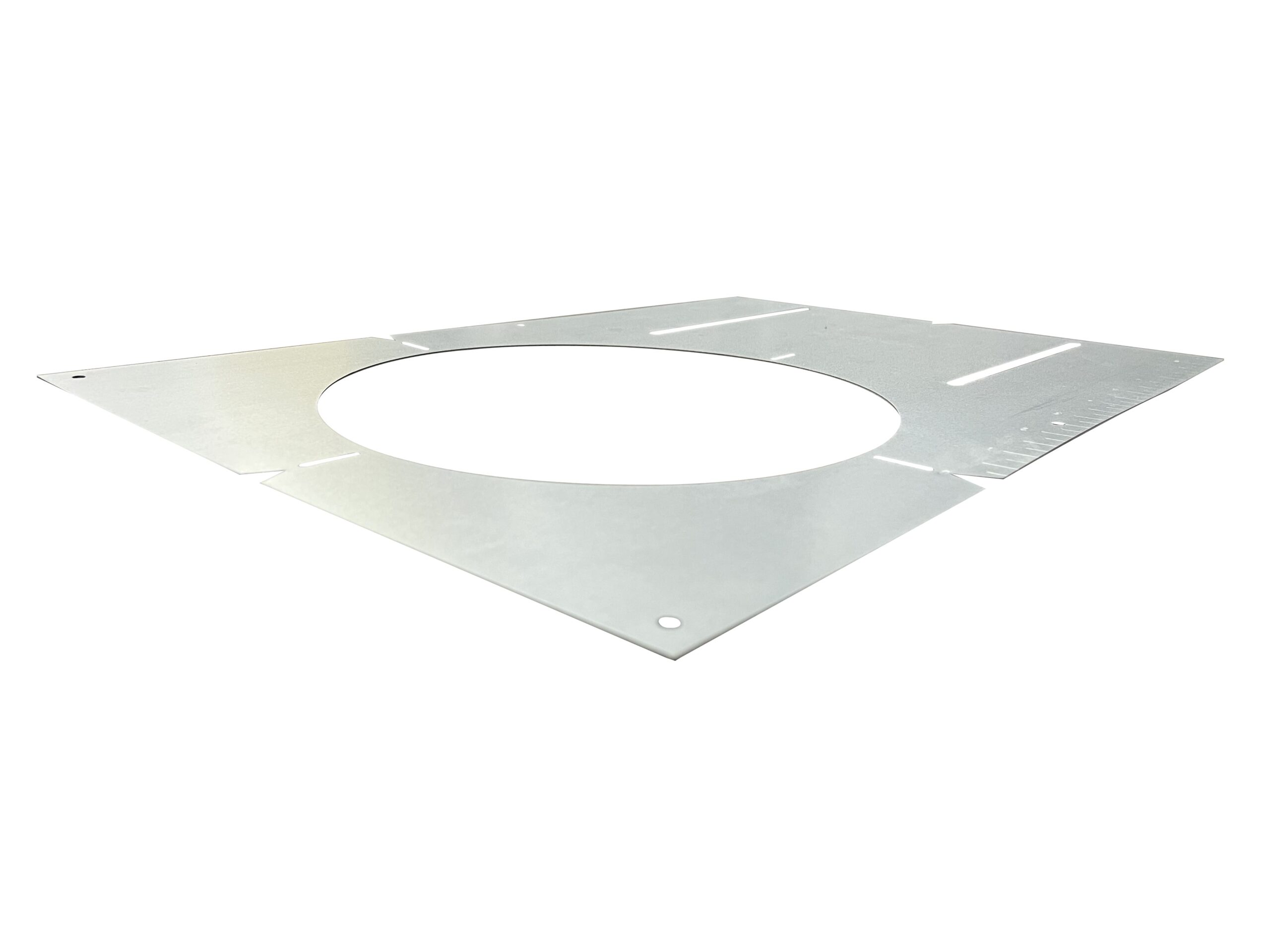

The PL-6" is a rough-in plate for 6" ultra-thin recessed LED lights. Fix it before drywall goes up, and its 6.5" opening becomes the edge your drywallers cut to. No pencil circles, no guesswork.
Footprint is 13.22" x 9.06". There's a printed inch scale along one edge for spacing a run.
No lip on this one. Built for new construction, sold by the box, quote on request.
What can I do if my recessed light hole is too big?
Cut it right the first time, because a no-lip plate won't hide an oversize opening. That's the argument for fixing the plate up before the ceiling closes. Your drywaller runs the cut-out tool against the plate's 6.5" steel edge instead of a pencil circle, so every opening on the floor comes out the same size in the same spot. If a hole is already cut too wide, you're into a lipped plate, an oversize trim, or a patch. The 6" plate ships without a lip.
How do you lay out pot lights before drywall?
Plates go up first, at the locations on your drawing. The manual's order is: mount the plates, let the drywallers cut and router the openings using each plate as the guide, then snap the light into place once the drywall's finished. Two visits instead of four. And there's a printed inch scale along the plate edge, so a helper can measure off the last plate rather than pulling tape from the wall at every fixture.
Why the 13.22 inch footprint matters
The plate measures 13.22" x 9.06". Joists framed 16" on centre leave about 14.5" clear, so the plate drops into a bay without anyone trimming it on site. The width holds steady across the whole plate range, 2" through 6", which means one layout habit no matter which apertures are on the drawing.
Which lights does it fit?
Six-inch ultra-thin recessed LED, the snap-in kind. Not can housings. The opening is 6.5" and Votatec's 6" slim panel carries a 7" trim, so the flange covers the cut with room to spare. New construction only, because the sequence needs the plate in before the ceiling closes. Smaller apertures have their own plate, 2" through 4", and the 4" comes both lipped and unlipped.
For the hole size, the fixing-hole positions and the full dimensioned drawing, open the Plate (PDF) in the Related documents panel before you release the layout to your framers. Send us your fixture count and aperture mix and we'll quote the plates and the lights together.
