12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable

  • Model No.: VO-FB12W15-120-D-5Way
  • Power : 15W/ 13W/ 11W/ 9W/7W ADJ
  • CCT : 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Input Voltage : 120V
More Details
12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable
12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable

Other product from this category

Product Details

Features

https://votatec.ca/wp-content/uploads/2024/04/5_Warrantied-icon_135_135-1-1.png
https://votatec.ca/wp-content/uploads/2024/04/ELT_Icon_135_135-1-1.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01-52.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01.png
https://votatec.ca/wp-content/uploads/2024/05/Icon_107107-94.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-28.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-10.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-05.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-11.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-68.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-09.png
https://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-08.png

Product Specification

  • Model No.: VO-FB12W15-120-D-5Way
  • Beam Angle:140°
  • CCT:2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Color:Black/ White
  • CRI:>80
  • Dimension:12"x2.36"
  • Input Voltage:120V
  • Power: 15W/ 13W/ 11W/ 9W/7W ADJ
  • Power Factor:>0.9
  • Brightness:1000Lm
  • Size:12"
Link copied!

12″ Flat Band Flush Mount – 5Way CCT & Power Adjustable

  • Model No.: VO-FB12W15-120-D-5Way
  • Power : 15W/ 13W/ 11W/ 9W/7W ADJ
  • CCT : 2700K/ 3000K/ 3500K/ 4000K/ 5000K ADJ
  • Input Voltage : 120V
More Details

Other product from this category

Product Features

  • Model No.: VO-FB12W15-120-D-5Way
  • Beam Angle:140°
  • CCT:2700K, 3000K, 3500K, 4000K, 5000K ADJ
  • Color:Black, White
  • CRI:>80
  • Dimension:12"x2.36"
  • Input Voltage:120V
  • Power:7W ADJ, 9W, 11W, 13W, 15W
  • Power Factor:>0.9
  • Brightness:1000Lm
  • Size:12"

Product Certificates

https://votatec.ca/wp-content/uploads/2024/04/5_Warrantied-icon_135_135-1-1.pnghttps://votatec.ca/wp-content/uploads/2024/04/ELT_Icon_135_135-1-1.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01-52.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-01.pnghttps://votatec.ca/wp-content/uploads/2024/05/Icon_107107-94.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-28.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-10.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-05.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-11.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-68.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-09.pnghttps://votatec.ca/wp-content/uploads/2024/04/Icon_107_107-08.png

Categories:

LED Lamps MR16

Tags:

LED MR16 Votatec

Product Overview

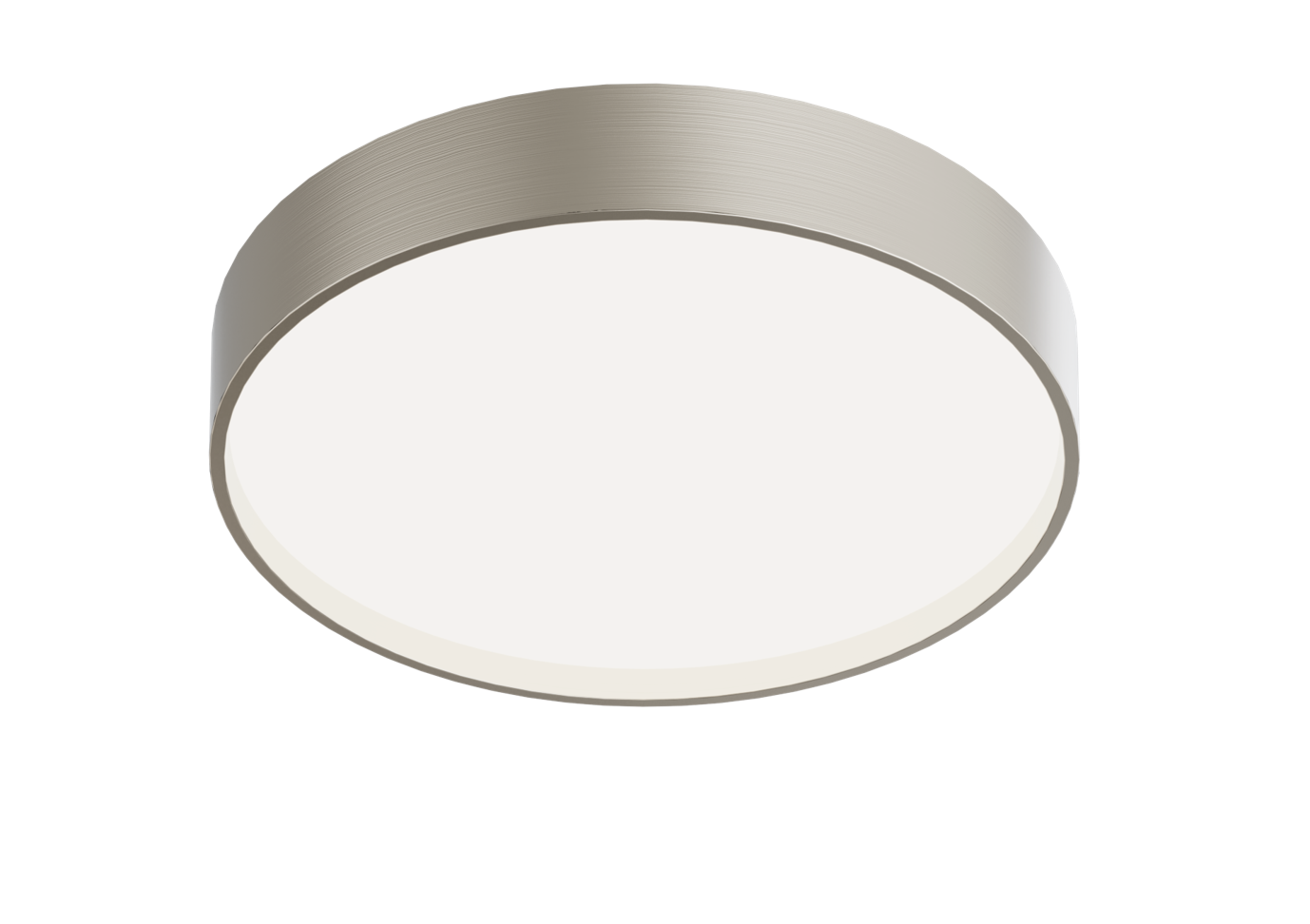

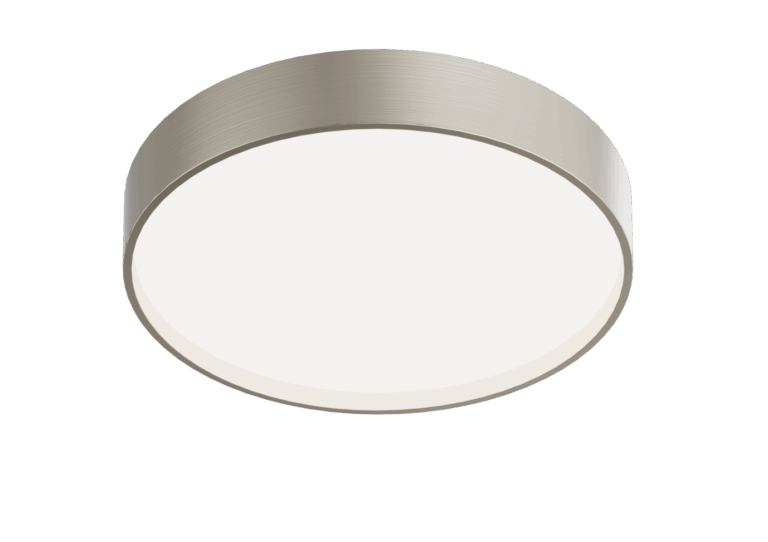

A 12" flat band LED flush mount that sets its own brightness and colour on two switches under the trim ring. One SKU covers five wattages and five whites, so you stock one box instead of twenty-five.

Pick 7W, 9W, 11W, 13W or 15W, and 2700K through 5000K. Output runs 460 to 1,050 lumens at CRI 80+, on 120V.

Iron housing, PMMA diffuser, in black, white or brushed nickel. cETLus listed, damp rated, five-year warranty.

What are the best modern flush ceiling lights?

The ones that disappear. A flat band profile reads as a clean disc against the ceiling, 2.36" deep, with the diodes hidden behind a PMMA diffuser instead of a visible lamp. Black, white and brushed nickel cover most modern interiors. No exposed fasteners, no glass shade to dust.

Will it dim on the controls you already stock?

Most likely. It runs ELV and TRIAC dimming from 10% to 100%, and the spec sheet names twelve tested dimmers across Lutron, Leviton and TP-Link, including the HS220 smart switch. Older dimmers built for incandescent lamps can still behave badly. Use one LED-rated control per group and you'll avoid most callbacks.

How much light does 15W actually give?

Between 1,000 and 1,050 lumens, depending on which white you set. The cooler settings run brighter: 15W gives 1,000 lm at 2700K, 3000K and 3500K, and 1,050 lm at 4000K and 5000K. Step down to 7W and you're at 460 to 550 lm. Efficacy holds at 66 to 70 lm/W right across the range.

Why the power factor matters on this one

It's rated above 0.9. That keeps apparent load close to real load, so a circuit carries more fixtures before you run out of headroom, and it's the number a spec reviewer checks on anything going into a commercial panel. Surge protection at 2.5kV is built in, and output holds from -20°C to 40°C.

Depth, clearance and where it's listed to go

It mounts to a standard ceiling box and ships with three wirenuts and two 1-1/2" box screws. Set both switches before you lift it, because they sit under the trim ring. The cETLus damp listing covers bathrooms, laundry rooms and covered porches. It's IP20, so keep it away from direct water and off exposed exterior walls.

For the tested dimmer list, the full lumen table by wattage and colour, and the mounting sequence, open the Spec sheet and Manual in the Related documents panel, and take the IES file if your designer needs photometry. Send us your unit count by finish and we'll come back with a wholesale quote and confirm brushed nickel availability.
