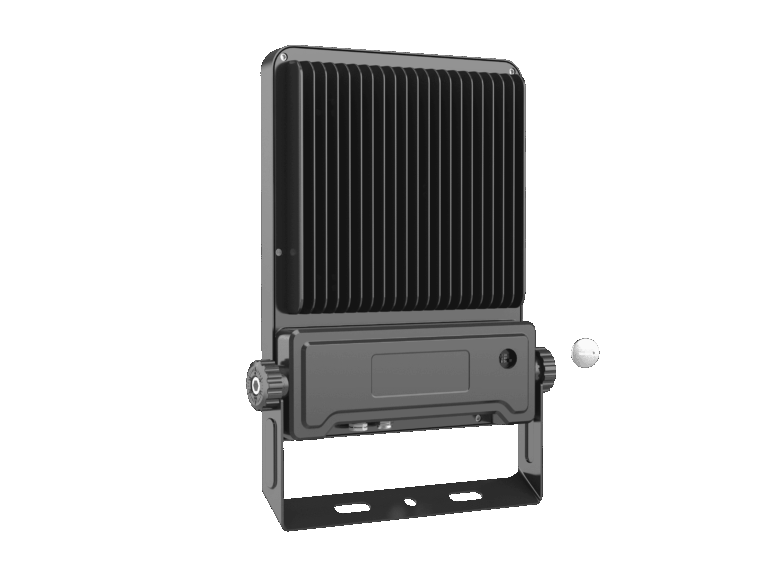

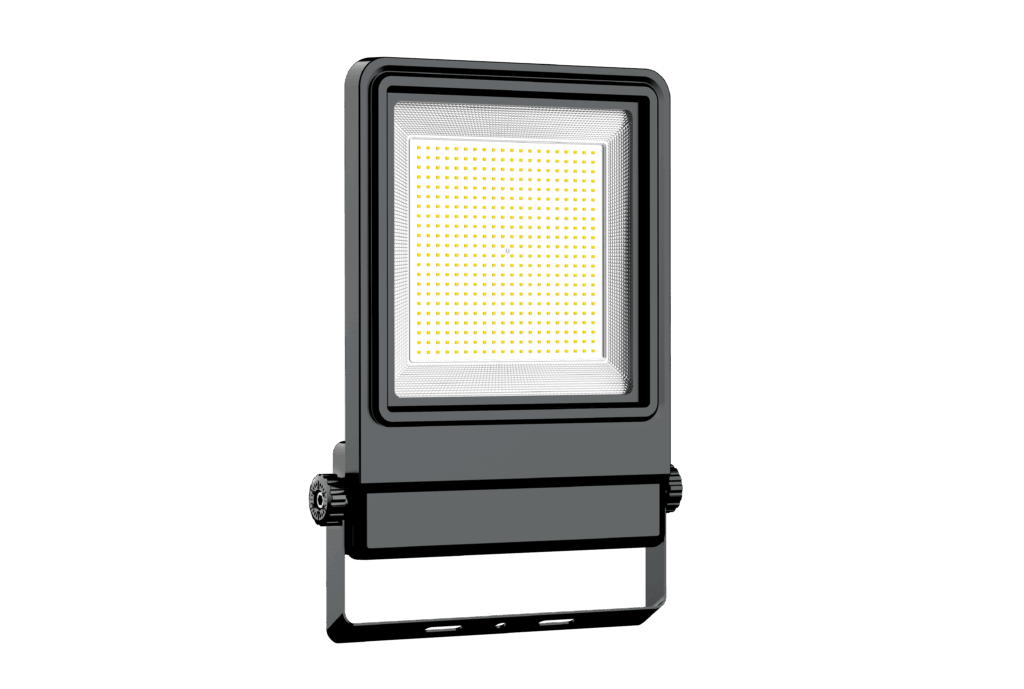

The ISL-FL02-A-300W is a true 300W flood light, not a 300W equivalent. One fixture covers three wattages and three colour temperatures, both set with a switch on site.
Measured output runs to 48,486 lm at 4000K, 165 lm/W, on Votatec's own goniophotometer report. Steps down to 240W and 200W. CRI 80, 120° beam.
Die-cast aluminum, 4 mm tempered glass, IP66 and IK08. cETL listed for wet locations. 6kV surge standard. 5 year warranty.
How bright is a 300 watt LED flood light?
This one measures 48,486 lumens at 4000K, tested on a goniophotometer at 293.6W input. That's 165 lm/W. Switched to 3000K or 5000K it delivers 45,949 lm and 45,811 lm. Votatec's published spec sheet is conservative here: it lists 48,000 lm, and the tested files come in above that at all three colour temperatures. Drop to the 240W setting for 38,400 lm, or 200W for 32,000 lm.
What is a 300 watt LED equivalent to?
Votatec doesn't publish an HID equivalence for this fixture, and you should treat the ones you see elsewhere carefully. Consumer listings advertise "300W" floods at 24,000 lm that draw nowhere near 300W, then claim a 1,500W halogen equivalent on top. Size the job on lumens and photometrics. Ask us for the IES set and your designer can lay out real footcandles instead of working backward from a claim.
Setting the wattage and colour temperature

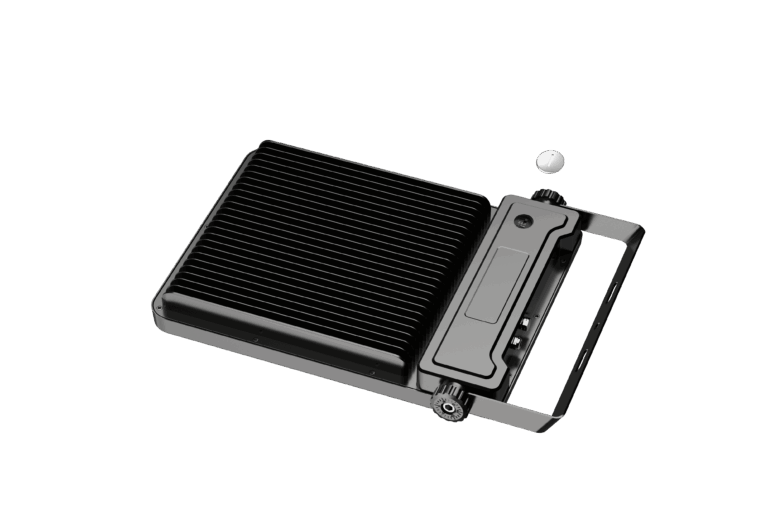

Both switches sit under a metal plug on the driver housing. Undo it with a flat-blade screwdriver, slide to position I, II or III for 3000K, 4000K or 5000K, set the wattage, then close the plug and check the seal. That last step matters. IP66 depends on it, and this is the only part of the fixture you open.
Will it fit your site?
Input is AC120-347V, so one part number covers 120V single phase through 347V commercial. Worst-case measured draw is 307.8W at 3000K, which at a power factor above 0.9 works out near 2.9A on 120V or 1.0A on 347V. Rated -30°C to +50°C, so it holds through a Prairie winter. Cable splices need IP68 connectors, a step above the fixture rating. The body is 19.13" x 15.98" x 2.72" and 7.43 kg, on an offset bracket with a ±180° aim scale.
For wiring colours, the switch sequence and the seven mounting steps, open the Manual (PDF), and take the IES zip if your designer needs the 3000K, 4000K and 5000K photometrics. Send us your fixture count and mounting height and we'll come back with a wholesale quote and a check on whether the 240W setting does the job for less.
