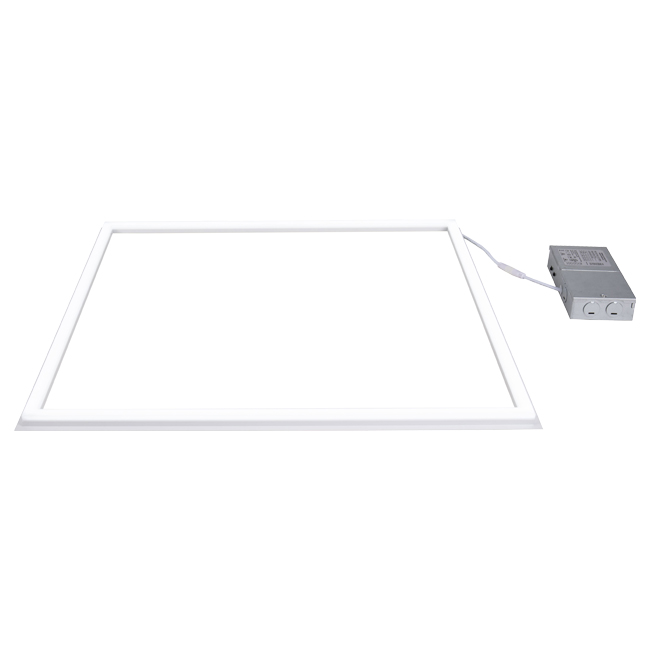

The T-Bar Frame Light drops into a standard 2x2 ceiling grid and lets the existing tile stay in place. At 0.62 in deep and 1.6 lb, it fits plenums that won't take a troffer.
Five wattages (20W to 40W) and five colour temperatures (3000K to 6500K) switch on the fixture, so one SKU covers 2500 to 5080 lumens at up to 128 lm/W.

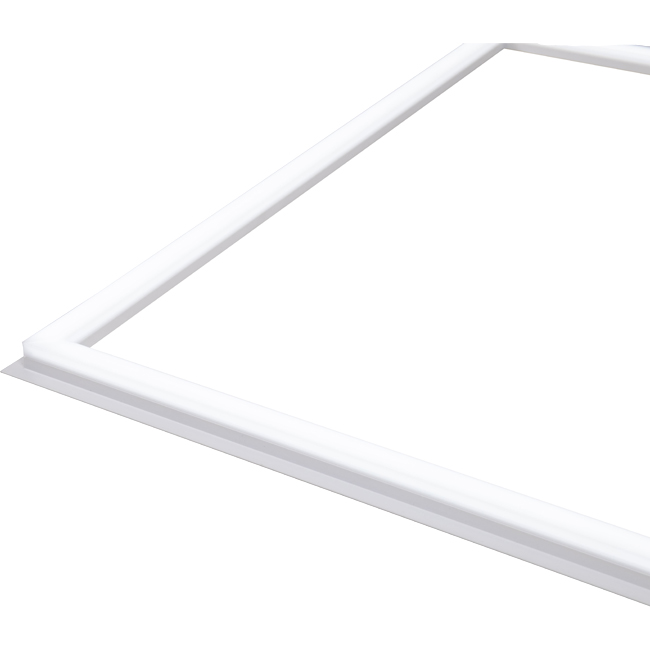

Aluminum frame, PC lens, 0-10V dimming to 10%, AC120-347V. CETL listed, 5 year warranty.
What are lights in a drop ceiling called?

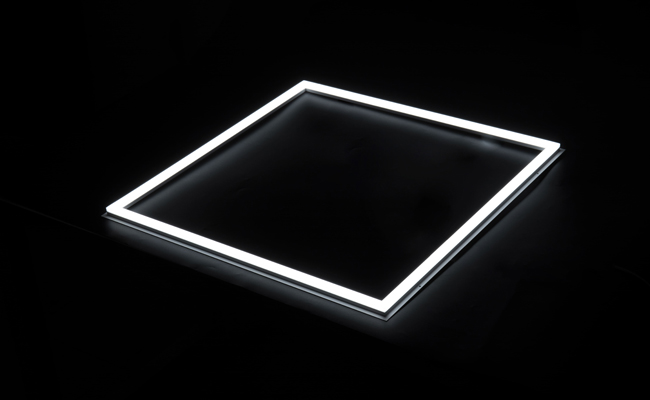

Three different things, and the names get mixed up constantly. A troffer is a deep steel housing that replaces a ceiling tile. A flat panel is a full 2x2 or 2x4 sheet that also replaces the tile. A frame light is the third option: a slim aluminum perimeter that sits in the grid while the original tile stays above it, lighting the room off the tile face instead of through a lens.
That difference decides whether the fixture fits.
Will it fit a shallow plenum?
This frame is 0.62 in deep and weighs 1.6 lb. A troffer of the same footprint runs several inches deep and several times the weight. In basement retrofits, low-plenum offices and anywhere ductwork already crowds the void, the frame light goes in where a troffer physically can't. The grid carries less load too, which matters on older ceilings.
Mounting is direct into the T-bar. Suspended kits are available as an accessory.
Why does the driver need its own location?

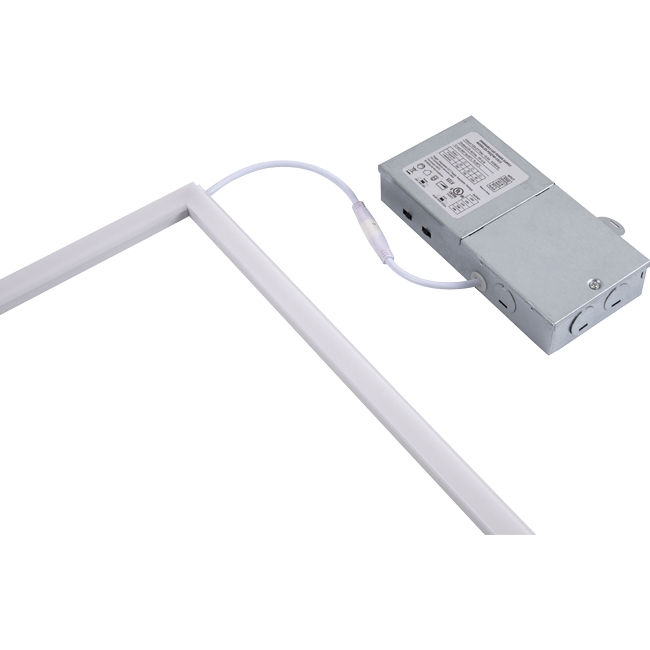

It's remote, not integral, so it mounts separately on a rigid surface. Keep it away from fan air outlets and other HVAC components, per the installation manual. Heat shortens driver life, and moving air across a driver enclosure is a known cause of early failure.
Expect to notch the ceiling tile for the lead wire, then seat the tile back above the frame.
What do the five wattages actually save you?
One part number covers 20W, 25W, 30W, 35W and 40W, and five colour temperatures from 3000K to 6500K. You stock one SKU for a whole building and set the output at install instead of ordering five variants. Dimming is 0-10V down to 10%, tested with the Lutron DSTV-Diva.
Dry locations only, IP20, rated -20C to 40C.
For wiring sequence, driver placement and the tile notch, open the Manual (PDF), and pull the IES file if your designer needs photometry for a layout. Send us your fixture count and ceiling grid size and we'll come back with a wholesale quote and a rebate-eligibility check for your province.
