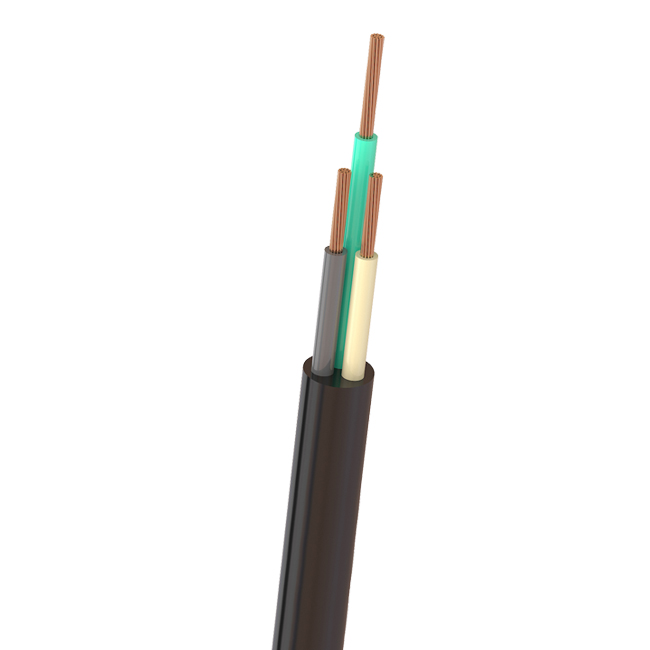

SOOW – Industrial Cable (Copper Conductor)
- Model No.: SOOW
- Conductor : STRANDED ANNEALED SOFT COPPER CONDUCTOR
- Insulation : EPR insulation
- Rated Voltage : 600 V
Categories:
Tags:
Product Specification
- Model No.: SOOW
- Rated Voltage:600 V
- Application:Flexible cords and cables for general power use (600 V)
- Conductor:Stranded annealed soft copper conductor
- Insulation:EPR insulation
- Jacket:CPE outer sheath
- Bonding Conductor:Bare copper (solid or stranded)
- Core Identification:2C: Black/White/ 3C: Black/White/Green/ 4C: Black/White/Red/Green/ 5C: Black/White/Red/Green/Orange/ 6C: Black/White/Red/Green/Orange/Blue
- Standards:CSA C22.2 No.49 14 · UL62
- Jacket Colors:Black
- Usage Notes:60 °C max operating temperature
- Cable Size:14/3(150M)/ 12/3(150M)/18/2(150M)- Black
SOOW – Industrial Cable (Copper Conductor)
- Model No.: SOOW
- Conductor : STRANDED ANNEALED SOFT COPPER CONDUCTOR
- Insulation : EPR insulation
- Rated Voltage : 600 V
Product Details
Show more
Product Features
- Model No.: SOOW
- Rated Voltage:600 V
- Application:Flexible cords and cables for general power use (600 V)
- Conductor:Stranded annealed soft copper conductor
- Insulation:EPR insulation
- Jacket:CPE outer sheath
- Bonding Conductor:Bare copper (solid or stranded)
- Core Identification:2C: Black/White, 3C: Black/White/Green, 4C: Black/White/Red/Green, 5C: Black/White/Red/Green/Orange, 6C: Black/White/Red/Green/Orange/Blue
- Standards:CSA C22.2 No.49 14 · UL62
- Jacket Colors:Black
- Usage Notes:60 °C max operating temperature
- Cable Size:14/3(150M), 12/3(150M),18/2(150M)- Black
