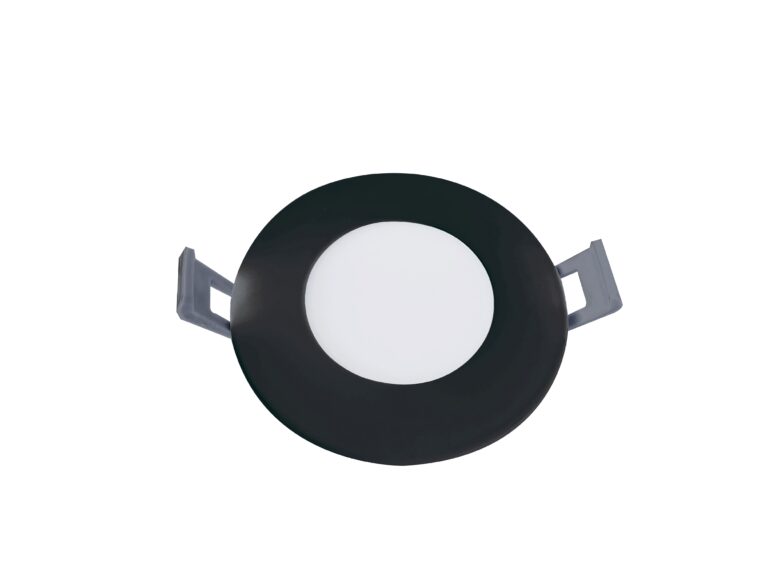

A 3-inch IC-rated slim pot light that drops into a 79mm hole and sits 42mm deep, so insulation can touch the housing and no can is needed.
Seven watts, 580 lumens certified at 82.9 lm/W, five colour temperatures on a slide switch: 2700K, 3000K, 3500K, 4000K and 5000K. Dims 10% to 100% on ELV or TRIAC.
Aluminum trim, PS diffuser, 2.5kV surge protection. cETLus listed, ENERGY STAR certified, damp rated, 5-year warranty.
What are the smallest recessed lights?
Two-inch and three-inch apertures are the smallest made. This is a 3-inch. It needs a 79mm (3.1") ceiling hole, the visible trim measures 94mm (3.7") across, and the body is 42mm (1.69") deep. That depth fits a 2x4 joist bay or a bulkhead where a can light won't go. Votatec also builds a 2-inch if the ceiling is tighter.
How many 3-inch pot lights do I need?
Work from lumens per fixture and beam spread, not aperture size. Each unit delivers 580 lumens certified, and the measured beam is 108° at half intensity, far wider than a 3-inch trim suggests. Spacing lands closer to a 4-inch than to a spot. In a kitchen or hallway at 8-foot ceilings, most contractors run 3 to 4 feet on centre.
What are the common problems with recessed lights?
Three, and this fixture answers two. Insulation contact is the first: the housing is certified Type IC, so batts may sit against it. Dimmer buzz is the second: ten dimmer models were bench-tested, all ELV or TRIAC, dimming 10% to 100%. The third is location rating, and it needs care. This model is damp rated only. Keep it out of showers and exposed soffits. Votatec's 3-inch gimbal and 3.5-inch panels are wet rated.
Will it fit your ceiling?
Allow a compartment of Ø4.9" x 1.7". The trim is smaller, but the IC-rated iron junction box rides on a quick-connect lead beside it, and the box sets the real clearance. The fixture is rated for enclosed luminaires and runs from -20°C to 40°C. It won't work on a 0-10V control system, so specify ELV or TRIAC.
For the compartment minimum, the surge rating and the ten tested dimmers, open the Spec sheet (PDF), and pull the IES files if your designer needs candela data for a spacing layout. Send us your fixture count and trim colour and we'll come back with a wholesale quote plus written confirmation of the switch positions.
