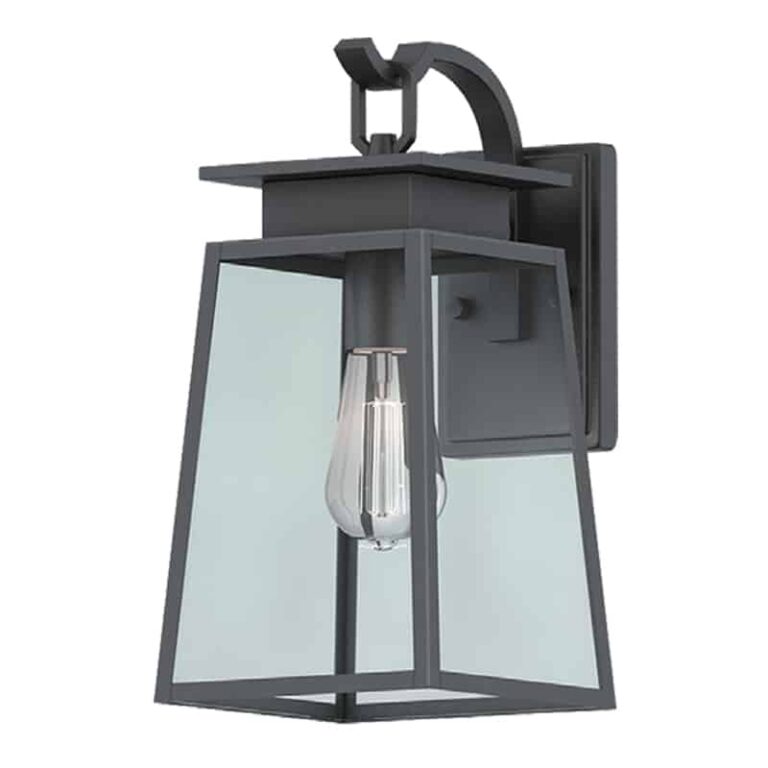

VO-11191MD-CG is a wet location outdoor wall lantern, cETL listed for direct exposure to rain, snow and runoff. Not damp rated. Wet.
One E26 socket, 60W maximum, 120V. Takes any A or ST bulb, so you set lumen output and colour temperature per job. 7.01" wide, 13.88" high, 9.26" deep.
Matte black steel with tempered glass panels. Mounting hardware ships in the box. Three year warranty. Bulb isn't included.
Can wet rated lights be used outdoors?
Yes, and wet is the rating you want on an exposed wall. The MAR Medium carries a cETL wet location listing from Intertek, which covers direct contact with rain, snow and runoff. Damp rated fixtures don't. Damp only covers sheltered positions like a covered porch ceiling or a soffit. If the fixture sits on an open wall with no overhang above it, wet is the minimum you can specify.
What waterproof rating does this fixture carry?
A wet location listing, not an IP number. North American fixtures are certified to UL and CSA location ratings rather than the IEC IP scale, so you won't find IP65 or IP44 anywhere on the spec sheet. Wet location is the equivalent assurance on a Canadian job, and it's what an inspector checks. Anyone quoting an IP number for this SKU is guessing at it.
Pick the bulb, set the light
The socket is E26 and the fixture ships empty, which is the point of buying it. Drop in a 2700K filament ST bulb for a heritage entry, or a 5000K A19 for a service door. Same fixture, different job, one line on the order. Dimming follows the bulb, so a dimmable LED on a matched dimmer works and a non-dimmable one won't. 60W is the ceiling.
What the installer needs to know
The junction box isn't included, and neither is sealing tape. Votatec ships the fixture, mounting unit, rubber rings, ball nuts, mounting screws and wire nuts. The mounting unit carries a preinstalled green ground screw, so the ground lands there before you make up the hot and neutral. One step matters more than the others: caulk between the back plate and the wall surface before you tighten it down, or water tracks in behind the fixture and the wet listing stops meaning much. Rated ambient runs -20C to 60C.
For the four step install sequence, the tool list and that caulking notice, open the Manual (PDF) in the Related documents panel, and check the Spec sheet for the full MAR range including the small and large frames. Send us your fixture count and we'll come back with a wholesale quote and confirm cold weather suitability for your site.
