Outdoor Post Light – Sol Collection

Model No.: VO-14631SM-3H
Collection : SOL
Base : 3xE26
Size : SMALL

Spec sheet Contact Us

Outdoor Post Light – Sol Collection

Other product from this category

Product Details

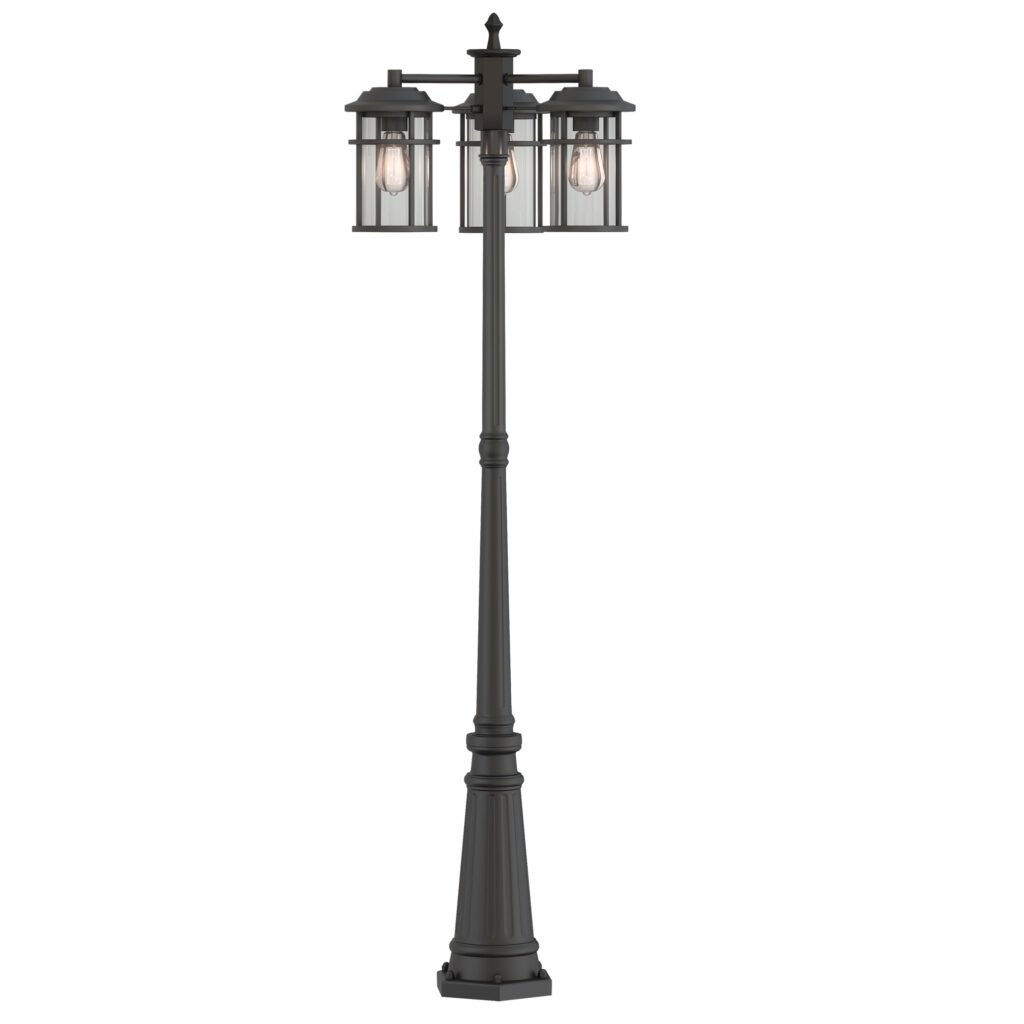

A 3-light outdoor post light that ships as a complete assembly. Pole, adaptor, tripod base and iron hooks are all in the box. No sourcing a pole separately, no fitter that doesn't line up. Three E26 sockets, 60W max each, on 120V. Matte black steel head, tempered glass, 69.6 in aluminum alloy pole. Bulbs aren't included, so you spec the lamp. cETLus listed for wet locations, rated to -20°C, 3-year warranty.

Is this post light rated for wet locations?

Yes. It's cETLus listed for wet locations, which covers direct rain and snow on an open driveway, walkway or entrance. Damp-rated fixtures don't cover that, and the difference shows up at inspection. Three lamps sit under their own hoods, facing down. Tempered glass, matte black steel.

What comes in the box?

The whole assembly. Head, pole, adaptor, tripod base and iron hooks, all included under one part number. Most post lights sell as a head only. You then chase a matching pole and an adaptor that fits it. On a subdivision or a condo walkway, that's the difference between one line on the purchase order and four. The head assembly weighs 7.55 kg, the pole 3.0 kg and the adaptor 0.4 kg. Worth knowing when you're costing freight on a pallet quantity. Need a single lamp instead of three? Ask us about VO-14631SM, the one-head version of the same fixture.

Which bulbs fit?

Three medium base E26 sockets, A or ST shape, 60W maximum each. Bulbs aren't included. That's on purpose. You choose the LED filament lamp that suits the property, then swap it years later without touching the fixture or the pole.

Will it hold up to a Canadian winter?

It's rated from -20°C to 60°C and mounts vertically. Steel head, tempered glass, aluminum alloy pole. The pole stands 69.6 in (1768 mm) on a 9.1 in (230 mm) base and threads to an M42x1.5 adaptor. Each lamp compartment measures 5.75 x 5.75 x 14.66 in. The three heads sweep a 22 in (558 mm) circle, so leave that clearance from a fence, wall or parked vehicle. One note before you order. There's no photocell or sensor on this model, so it needs a switched or timed circuit. For the mounting sequence, tripod footprint and full pole and adaptor dimensions, open the Manual (PDF) in the Related documents panel, and pull the Spec sheet if you need the single-head VO-14631SM on the same site. Send us your unit count and we'll come back with a wholesale quote and a lead time.

Relateddocuments

pdf

pdf

Features

https://votatec.ca/wp-content/uploads/2024/04/ELT_Icon_135_135-1-1.png

Categories:

Decorative Lighting Outdoor wall light

Tags:

led wall pack light canada led wall pack light fixture

Product Specification

Model No.: VO-14631SM-3H
Collection:Sol
Base:3xE26
Size:Small
Bulb Included:No
Color:Black
Power:60W
Dimension:5.75"x14.66"
Install Position:Down
Material:Steel
Hardware included:Pole/Adaptor

Outdoor Post Light – Sol Collection

Outdoor Post Light – Sol Collection

Model No.: VO-14631SM-3H
Collection : SOL
Base : 3xE26
Size : SMALL

Other product from this category

Product Details

A 3-light outdoor post light that ships as a complete assembly. Pole, adaptor, tripod base and iron hooks are all in the box. No sourcing a pole separately, no fitter that doesn't line up. Three E26 sockets, 60W max each, on 120V. Matte black steel head, tempered glass, 69.6 in aluminum alloy pole. Bulbs aren't included, so you spec the lamp. cETLus listed for wet locations, rated to -20°C, 3-year warranty.

Is this post light rated for wet locations?

Yes. It's cETLus listed for wet locations, which covers direct rain and snow on an open driveway, walkway or entrance. Damp-rated fixtures don't cover that, and the difference shows up at inspection. Three lamps sit under their own hoods, facing down. Tempered glass, matte black steel.

What comes in the box?

The whole assembly. Head, pole, adaptor, tripod base and iron hooks, all included under one part number. Most post lights sell as a head only. You then chase a matching pole and an adaptor that fits it. On a subdivision or a condo walkway, that's the difference between one line on the purchase order and four. The head assembly weighs 7.55 kg, the pole 3.0 kg and the adaptor 0.4 kg. Worth knowing when you're costing freight on a pallet quantity. Need a single lamp instead of three? Ask us about VO-14631SM, the one-head version of the same fixture.

Which bulbs fit?

Three medium base E26 sockets, A or ST shape, 60W maximum each. Bulbs aren't included. That's on purpose. You choose the LED filament lamp that suits the property, then swap it years later without touching the fixture or the pole.

Will it hold up to a Canadian winter?

It's rated from -20°C to 60°C and mounts vertically. Steel head, tempered glass, aluminum alloy pole. The pole stands 69.6 in (1768 mm) on a 9.1 in (230 mm) base and threads to an M42x1.5 adaptor. Each lamp compartment measures 5.75 x 5.75 x 14.66 in. The three heads sweep a 22 in (558 mm) circle, so leave that clearance from a fence, wall or parked vehicle. One note before you order. There's no photocell or sensor on this model, so it needs a switched or timed circuit. For the mounting sequence, tripod footprint and full pole and adaptor dimensions, open the Manual (PDF) in the Related documents panel, and pull the Spec sheet if you need the single-head VO-14631SM on the same site. Send us your unit count and we'll come back with a wholesale quote and a lead time.

Show more

Product Features

Model No.: VO-14631SM-3H
Collection:Sol
Base:3xE26
Size:Small
Bulb Included:No
Color:Black
Power:60W
Dimension:5.75"x14.66"
Install Position:Down
Material:Steel
Hardware included:Pole,Adaptor
