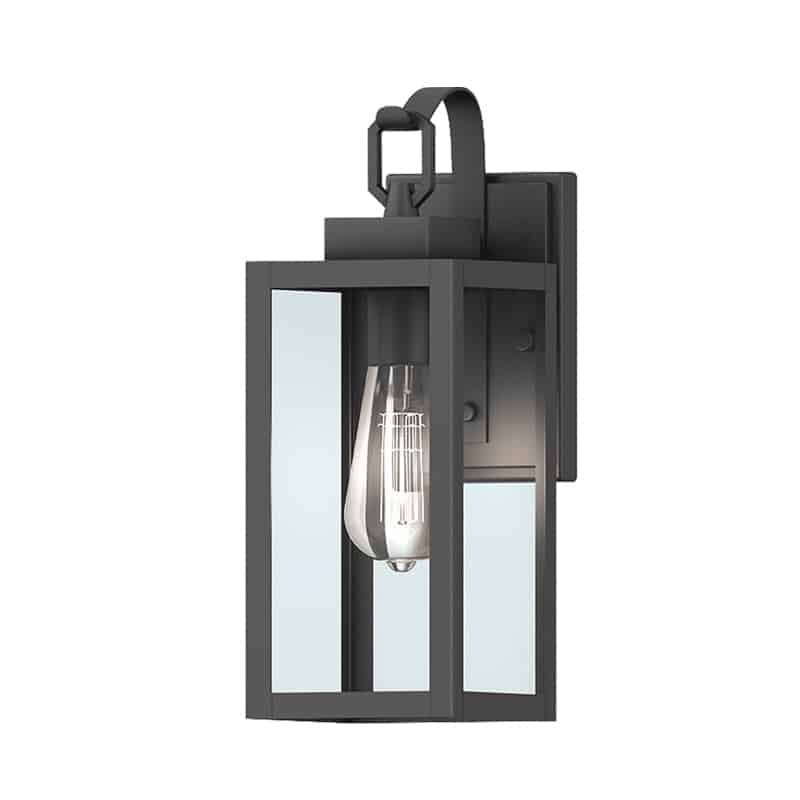

The RIO Small is a matte black outdoor wall light that's cETLus listed for wet locations, so it goes on an open porch, an uncovered side entry or an exposed garage wall.
Steel frame, tempered glass, 13.74in tall and 5in wide. One E26 socket, 60W maximum lamp, so you pick the LED and the colour temperature.
Backed by a 3 year warranty and tested from -30C to 50C.
How big should outdoor wall lights be?
Match the fixture to the opening it lights, not to the wall. At 13.74in tall and 5in wide, the RIO Small suits a single entry door, a side door, or a narrow pier between two windows. It projects 6.66in off the wall, so it clears a storm door without catching a shoulder. For a pair flanking a double garage or a wide front porch, step up to the 17.74in Medium in the same collection. For a driveway pillar, the Rio post top covers the same look.
What are the benefits of black wall lights?
Matte black is the finish that disappears. It reads as neutral against brick, stucco, dark siding and black window frames. It also hides the water spotting and dust film that show up on polished and brushed finishes after one winter. On this fixture the black steel frame is the shade and the tempered glass carries the light, so a clear filament lamp stays the feature.
Is the RIO Small rated for wet locations?
Yes. The Rio collection spec sheet lists it CETLus-Listed with a wet location rating, which covers direct rain and snow, not just a covered soffit. Votatec doesn't publish an IP number for the fixture and it doesn't need one. In Canada the cETL location rating is what an inspector reads, and wet is the top of the three, above damp and dry.
What the installer needs on site
Three things aren't in the box: the junction box, the sealing tape and the lamp. The manual's order is mounting unit first, then the wire connection, then the fixture on with the supplied rubber rings and screws. Its one warning earns its place in a Canadian winter. Caulk the back plate and the wall surface, or water gets in behind the fixture. The green ground screw comes preinstalled.
For the wiring diagram, the four step sequence and that caulking note, open the Manual (PDF) in the Related documents panel, and the Spec sheet if you're comparing the Small against the 17.74in Medium or the post top. Send us your unit count and we'll come back with a wholesale quote and a stock check on the Rio collection.
